SAP CRM Middleware Software Distribution

The check client and the transport companies only exchange information with the client repositories.Software development in cell eventualities impacts the 5 repositories listed above. They are all positioned on the CRM Server and/or the Mobile Repository Server.The brackets contain the default names of the databases on the cell repository server that maintain corresponding repositories.

The assorted repositories in a mobile situation are:
  1. On the CRM Server the Middle ware services repository (accommodates the R/3 adapter repository, replication repository,Move repository and the ASCII adapter repository) the BDoc repository the ABAP knowledge dictionary
  2. On the Cellular Repository Server the application repository (ars_db) the BDoc repository (trrep) the IDES database (ides)
These repositories are modified by the next tools:
  1. the Administration Console (solely server repositories)
  2. the Cell Software Studio (solely shopper repositories)
  3. the BDoc Modeler (both server and client repositories)
  4. the SAP GUI (solely server repositories)

Transport to the manufacturing CRM server

The transport of the design time change lists isn't dealt with by the CRM Middle ware, since the Utility Repository is treated like customary ABAP Dictionary tables.The obtain to the involved improvement station is handled by transport providers of the growth station.The runtime objects of the transported change lists must be generated on the goal system by the mobile utility studio.

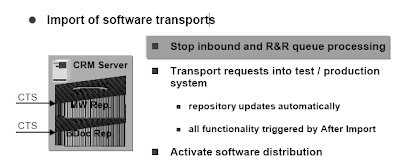

Changes to the BDoc Repository and the Middle ware Repository are transported via the Change and Transport System, first from the event to the take a glance at system, after which from the check system to the production system.With a objective to import software program transports and distribute the corresponding information to the mobile clients, you need to:
  1. first cease all the inbound and R&R queues on the related CRM server,
  2. then import the requests into the take a glance at or production system on that server,
  3. afterwards activate the software program distribution course of, and
  4. lastly start the inbound and R&R queues again.

Software replication to manufacturing customer

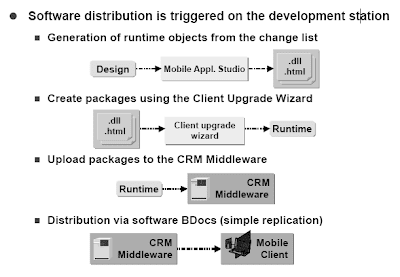

Software distribution is activated on the development statio n and involves the following steps:
  1. to start with run time objects are generated from the transported change lists
  2. then run time object packages are created by the Client Improve Wizard
  3. afterwards these packages are uploaded to the CRM Middle ware
  4. finally the software is distributed via BDocs using simple replication
Simple replicated BDoc messages aren't stored in the CDB neither is there any realignment possible. The circulation definitions for such BDocs include only the R&R service and the outbound adapter. The inbound adapter on the CRM Middle ware can obtain “outdated” BDoc varieties from the mobile client and converts them into “new” ones.The mobile consumer first receives and processes the “old” BDocs types. When receiving BDocs containing software updates, the shopper stops the processing of the inbound queue and performs the software updates. From this second the cellular client application can handle the “new” BDoc sorts and processes the remaining BDoc messages within the inbound queue.On the mobile consumer, the “old“ BDocs are then processed first.Afterwards the inbound queue on the cellular consumer is stopped in order to permit the software program update.Then the inbound queue is released once more and the “new“ BDocs may be processed.
